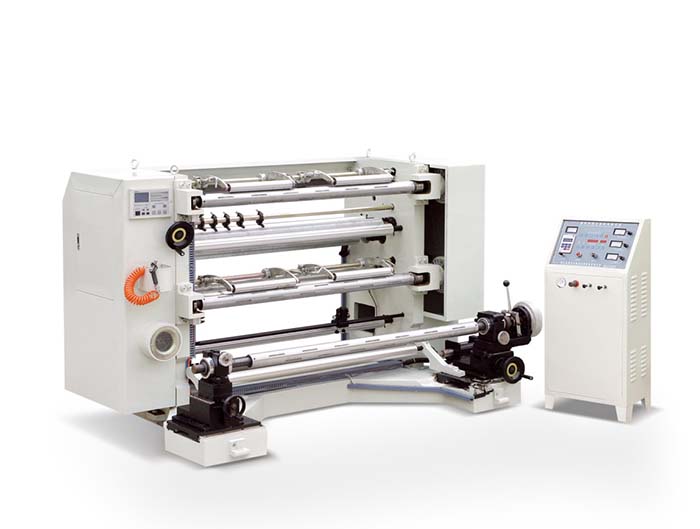

Application: This machine is suitable for slitting and rewinding such variousroll materials as BOPP. PET. CPP CPE. PVC. aluminum foil laminated withfilm and paper, etc And can cut edge, separate and cut material accordingto different requirements during production

    用途：該機適用于BOPP、PET、CPP、CPE、PVC、PE、鋁箔紙張等各種卷狀材料的分條、在生產過程中根據不同需要對材料進行切邊、分切等。

Feature：

1. Main Motor equipped with inverter for speed regulation

2. Separated General Control Cabinet, more flexible and even easieroperation

3. Automatic EPC for unwinding, photocell is suitable for tracking the edgeand/or the line of material

4. Equipped with air shaft for unwinding material loading, magnetic powderbrake and auto tension controller

5. Air shaft for rewinding (frictional cam shaft available for option), Magneticpowder clutch for rewinding tension control

6. Equipped with air trim discharge conveying system

7. Automatic meter counting device

8. Pressure roller for rewinding to make rewinding roll more uniform

9. Disk knife available for option

主要特點:

1、主機變頻調速。

2、獨立總控制箱,操作靈活、方便。

3、放卷自動糾偏,光電眼跟蹤可跟邊或跟線。

4、放卷采用氣脹軸,磁粉制動器放卷,自動張力控制。

5、收卷采用氣脹軸(可裝配凸輪軸),磁粉離合器收卷。

6、設有廢料吹邊裝置。

7、走料長度自動計米。

8、收卷壓輥使卷材更平整。

9、可選用圓刀分切裝置
